For small size pillow & 3 or 4 side and pouch convertible

This machine is primarily designed for producing small size pillow and pouch convertible.

  • Convertible for 4 side seal pillow with a simple arrangement of the horizontal seal jaws.
  • Simple, functional, low maintenance construction
  • Servomotor drive to increase stability of the sealing function.
  • Automatic adjustment device of film tracking.
  • Easy operation by means of 3.6" touch screen display
  • Film feeding by servo motor

Applications

Snack, Bean Sprout, Pasta, Nuts, Pepper, Coffee, Powders, Bolts and nuts, Small metal parts, Small toys, Vegetable, Grains, Granulates, Meat dumpling, frozen chicken

Standard Specifications

  • Clogging detection, (horizontal sealer)
  • Self adjustment functions
  • Product memory function

Options

  • Feeding conveyors
  • Discharge conveyors
  • Printer
  • Perforation
  • Automatic splicing device
  • Gas filling
  • Stainless still frame
  • Variety of seal options
  • Gusset device
  • Volumetric filler
  • WeighFiller
  • Auger filler

Specifications - WF-9410WN

Operating speed

Typical:-
up-to 80 bags/min.

Bag size



Pillow pouch:-
35 mm - 100 mm (W)
40 mm - 175 mm (L)
3 or 4 side bag:-
45 mm - 110 mm (W)
40 mm - 175 mm (L)
Product weight:-
TBA
Packaging material:-
Laminated films
Power consumption:-
3 x 220 (415) VAC, 1.5 KW
Compressed air:-
0.6 MPa, 200L/min
Machine dimensions:-
1050 mm W
970 mm L
1360 mm H
Machine weight:-
approx. 400 kg

Bagging machines

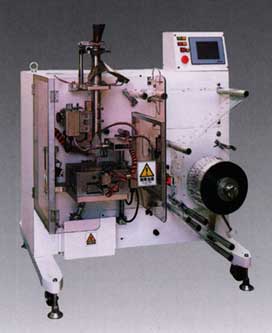

WF-9410WN bagging machine for small size pillow and 3 or 4 side pouch convertible

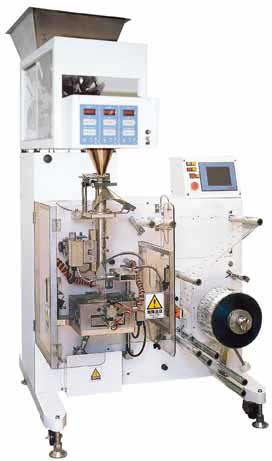

WF-9410WN bagging machine with weighing unit

Bagging machines

3 side pouch

Bagging technology

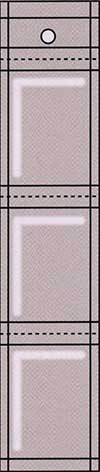

Headed 4 side pouch with perforation

Bagging technology
Pillow pouch
4 side pouch
