Economical high performance machine with 2 servo drivers

This machine is designed primarily for forming bags with hem seal.

  • Simple, functional, low maintenance construction
  • Servomotor drive to increase stability of the sealing function.

Applications

Snack, Bean Sprout, Pasta, Nuts, Pepper, Coffee, Powders, Bolts and nuts, Small metal parts, Small toys, Vegetable, Grains, Granulates, Meat dumpling, frozen chicken

Standard Specifications

  • Clogging detection, (horizontal sealer)
  • Self adjustment functions
  • Product memory function

Options

  • Twin version of the machine
  • Feeding conveyors
  • Discharge conveyors
  • Printer
  • Perforation
  • Automatic splicing device
  • Gas filling
  • Stainless still frame
  • Variety of seal options
  • Gusset device
  • Volumetric filler
  • WeighFiller
  • Auger filler

Specifications

Operating speed:-
up to 100 bags/min.
Bag size:-
80 mm - 230 mm (W)
60 mm - 330 (L)
Product weight:-
up to 2500 g
Packaging material:-
Laminated film, (PE)
Power consumption:-
3 x 220 (415) VAC, 3.5 KW
Compressed air:-
0.6 MPa, 100L/min
Machine dimensions:-
1.040 mm W
1.500 mm L
1.600 mm H
Machine weight:-
approx. 400 kg



Sanwa Bagging machines

WF-5000SN twin bagging machine

Sanwa Bagging machines

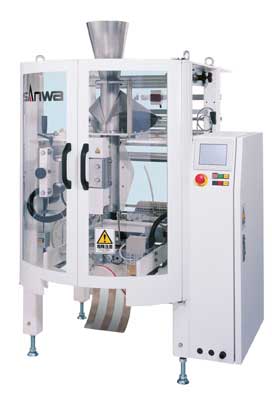

WF-5000SN bagging machine

Sanwa Bagging machines

Pillow bag

Sanwa Bagging machines

Flat gusset bag

Sanwa Bagging technology

Block bottom gusset bag

Sanwa Bagging technology

Slanted pillow bag
