Bagging machine integrated with tape banding unit

This machine is offering tape banding attachment that add quality image to the product.

For added flexibility, by detaching banding machine standard pillow ad gusset bags can be also produced.

  • Low power consumption
  • Simple, functional, low maintenance construction
  • Servomotor drive to increase stability of the sealing function.
  • Stainless steel frame.

Applications

Snack, Bean Sprout, Pasta, Nuts, Pepper, Coffee, Powders, Bolts and nuts, Small metal parts, Small toys, Vegetable, Grains, Granulates, Meat dumpling, frozen chicken

Standard Specifications

  • Clogging detection, (horizontal sealer)
  • Self adjustment functions
  • Product memory function

Options

  • Feeding conveyors
  • Discharge conveyors
  • Printer
  • Perforation
  • Automatic splicing device
  • Gas filling
  • Stainless still frame
  • Variety of seal options
  • Gusset device
  • Volumetric filler
  • WeighFiller
  • Auger filler

Specifications

Operating speed:-

up-to 100 bags/min.

Bag size:-

80 mm - 225 mm (W)
80 mm - 350 mm(L)

Product weight:-
TBA
Packaging material:-
Laminated film, aluminum foil, PE, CPP, etc.
Power consumption:-
3 x 220 (415) VAC, 5.0 KW
Compressed air:-
0.6 MPa, 350L/min
Machine dimensions:-
1350 mm W
2100 mm L
1600 mm H
Machine weight:-
approx. 1000 kg

Bagging machines

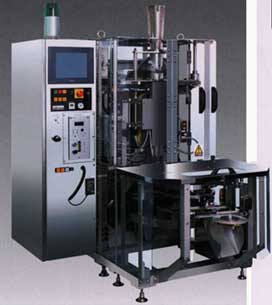

WF-2220Sk bagging machine with tape banding unit

Bagging technology

Pillow bag

Bagging machines

Flat gusset bag

Bagging technology

Tape banded pillow bag

Bagging machines

Tape banded gusset bag
