Standard mechanical drive

This machine is designed primarily for forming bags with hem seal.

Simple, functional, low maintenance construction
Standard mechanical drive.

Applications

Snack, Bean Sprout, Pasta, Nuts, Pepper, Coffee, Powders, Bolts and nuts, Small metal parts, Small toys, Vegetable, Grains, Granulates, Meat dumpling, frozen chicken

Standard Specifications

Clogging detection, (horizontal sealer)
Self adjustment functions
Product memory function

Options

Feeding conveyors
Discharge conveyors
Printer
Perforation
Automatic splicing device
Gas filling
Stainless still frame
Variety of seal options
Gusset device
Volumetric filler
WeighFiller
Auger filler

Specifications

Operating speed:-	up-to 100 bags/min.
Bag size:-	60 mm - 210 mm (W) 60 mm - 340 mm(L)
Product weight:-	TBA
Packaging material:-	Laminated film, (PE)
Power consumption:-	3 x 220 (415) VAC, 2.8 KW
Compressed air:-	0.6 MPa, 150L/min
Machine dimensions:-	850 mm W 1.450 mm L 1.590 mm H
Machine weight:-	approx. 800 kg

WF-2000SDN twin bagging machine

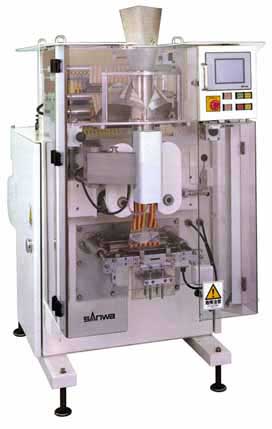

WF-2000SN bagging machine

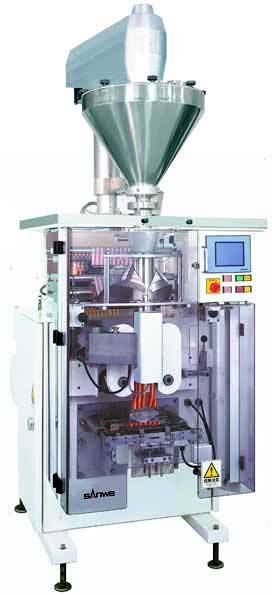

WF-2000SNA bagging machine with auger filler

Pillow bag

Tape banding bag
