3 or 4 side seal with reclosable zipper
This machine is primarily designed for producing of reclosable zipper pouches.
- Lower cost then using preformed zipper
- Simple, functional, low maintenance construction
- Servomotor drive to increase stability of the sealing function.
- Automatic adjustment device of film tracking.
- Versatile packaging forms are available, zipper bag, 4-side, 3 side seals and pillow type bag.
Applications
Shred cheese, Snack, Bean Sprout, Pasta, Nuts, Pepper, Coffee, Powders, Bolts and nuts, Small metal parts, Small toys, Vegetable, Grains, Granulates, Meat dumpling, frozen chicken
Standard Specifications
- Clogging detection, (horizontal sealer)
- Self adjustment functions
- Product memory function
Options
- Feeding conveyors
- Discharge conveyors
- Printer
- Perforation
- Automatic splicing device
- Gas filling
- Stainless still frame
- Variety of seal options
- Gusset device
- Volumetric filler
- WeighFiller
- Auger filler
Specifications - WF-4500CN
|
|
| pillow bag, 3 or 4 side bag:- |
up-to 50 bags/min. |
| zipper bag:- |
up-to 40 bags/min. |
|
|
| 3 or 4 side bag :- |
100 mm - 330 mm (W)
100 mm - 300 mm (L) |
| zipper bag:- |
150 mm - 330 mm (W)
120 mm - 300 mm (L) |
Product weight:- |
TBA |
Packaging material:- |
Laminated films |
Power consumption:- |
3 x 220 (415) VAC, 8.5 KW |
Compressed air:- |
0.6 MPa, 550L/min |
Machine dimensions:- |
1560 mm W
1755 mm L
1900 mm H |
Machine weight:- |
approx. 850 kg |
|

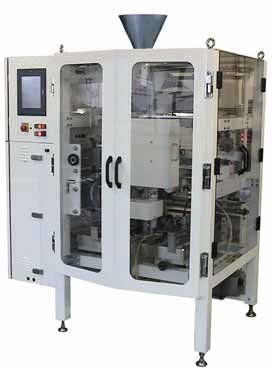

WF-4500CN bagging machine for 3 or 4 side seal with zipper
4 side seal bag
3 side seal bag
4 side seal bag with zipper
3 side seal bag with zipper
|
