Multi sealer/pillow & 3 or 4 side and pyramid pouch convertible

This machine is primarily designed for producing pyramid pouch convertible.

  • both 4 side and pillow type seal can be possible by just turning the horizontal sealer 90 degrees.
  • Simple, functional, low maintenance construction
  • Servomotor drive to increase stability of the sealing function.
  • Automatic adjustment device of film tracking.
  • Easy operation by means of 9" touch screen display

Applications

Snack, Bean Sprout, Pasta, Nuts, Pepper, Coffee, Powders, Bolts and nuts, Small metal parts, Small toys, Vegetable, Grains, Granulates, Meat dumpling, frozen chicken

Standard Specifications

  • Clogging detection, (horizontal sealer)
  • Self adjustment functions
  • Product memory function

Options

  • Feeding conveyors
  • Discharge conveyors
  • Printer
  • Perforation
  • Automatic splicing device
  • Gas filling
  • Stainless still frame
  • Variety of seal options
  • Gusset device
  • Volumetric filler
  • WeighFiller
  • Auger filler

Specifications - WF-3900MN

Operating speed

Pyramid:-
up-to 70 bags/min.
3 or 4 side bag:-
up-to 55 bags/min.
Pillow bag:-
up-to 80 bags/min.

Bag size



Pyramid or Pillow bag:-
80 mm - 130 mm (W)
60 mm - 270 mm (L)
3 or 4 side bag:-
100 mm - 140 mm (W)
80 mm - 220 mm (L)
Product weight:-
TBA
Packaging material:-
Laminated films
Power consumption:-
3 x 220 (415) VAC, 3.0 KW
Compressed air:-
0.6 MPa, 500L/min
Machine dimensions:-
1082 mm W
1500 mm L
1275 mm H
Machine weight:-
approx. 650 kg







Bagging machines

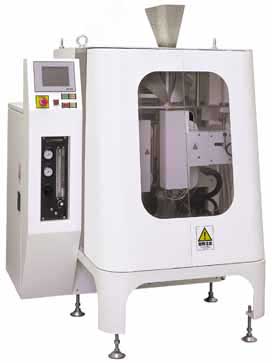

WF-3900MN bagging machine for 3 or 4 side pyramid pouch convertible

Bagging machines

3 side seal bag

Pyramid pouch

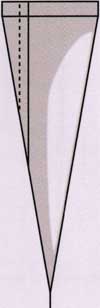

Long length pyramid pouch

Bagging technology
Pillow bag
4 side seal bag
