For small size pillow & pyramid pouch convertible

This machine is primarily designed for producing small size pillow and pyramid pouch convertible.

  • Convertible for pyramid and pillow with a simple arrangement of the horizontal seal jaws.
  • Simple, functional, low maintenance construction
  • Servomotor drive to increase stability of the sealing function.
  • Automatic adjustment device of film tracking.
  • Easy operation by means of 3.6" touch screen display
  • Film feeding by servo motor

Applications

Snack, Bean Sprout, Pasta, Nuts, Pepper, Coffee, Powders, Bolts and nuts, Small metal parts, Small toys, Vegetable, Grains, Granulates, Meat dumpling, frozen chicken

Standard Specifications

  • Clogging detection, (horizontal sealer)
  • Self adjustment functions
  • Product memory function

Options

  • Feeding conveyors
  • Discharge conveyors
  • Printer
  • Perforation
  • Automatic splicing device
  • Gas filling
  • Stainless still frame
  • Variety of seal options
  • Gusset device
  • Volumetric filler
  • WeighFiller
  • Auger filler

Specifications - WF-9010SN

Operating speed

Pillow pouch:-
up-to 80 bags/min.
Pyramid pouch:-
up-to 70 bags/min.

Bag size



Typical:-
35 mm - 80 mm (W)
40 mm - 175 mm (L)
Product weight:-
TBA
Packaging material:-
Laminated films
Power consumption:-
3 x 220 (415) VAC, 1.0 KW
Compressed air:-
0.6 MPa, 200L/min
Machine dimensions:-
1050 mm W
970 mm L
1360 mm H
Machine weight:-
approx. 400 kg



Bagging machines

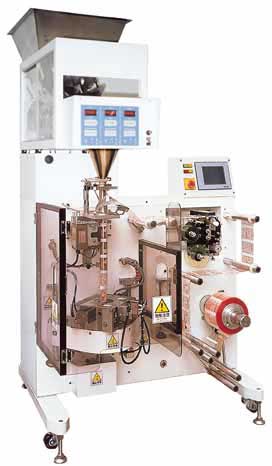

WF-9010 bagging machine with weighing unit.

WF-9040 bagging machine with auger filler

Bagging technology

Pillow pouch

Bagging machines

Pyramid pouch

Bagging technology

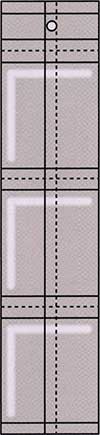

Headed pillow pouch with perforationBagging machines

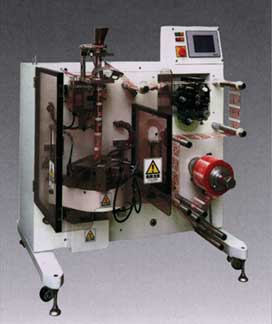

WF-9010SN bagging machine for small size pillow and pyramid pouch convertible
