Gusset bag with zipper

This machine is primarily designed for producing gusset bags with zipper.

  • Low power consumption
  • Simple, functional, low maintenance construction
  • Servomotor drive to increase stability of the sealing function.
  • Stainless steel frame.

Applications

Snack, Bean Sprout, Pasta, Nuts, Pepper, Coffee, Powders, Bolts and nuts, Small metal parts, Small toys, Vegetable, Grains, Granulates, Meat dumpling, frozen chicken

Standard Specifications

  • Clogging detection, (horizontal sealer)
  • Self adjustment functions
  • Product memory function

Options

  • Feeding conveyors
  • Discharge conveyors
  • Printer
  • Perforation
  • Automatic splicing device
  • Gas filling
  • Stainless still frame
  • Variety of seal options
  • Gusset device
  • Volumetric filler
  • WeighFiller
  • Auger filler

Specifications - WF-2700CN

Operating speed

gusset bag with zipper:-

pillow bag:-


up-to 50 bags/min.

up-to 80 bags/min

Bag size

gusset bag with zipper:-

pillow bag:-



120 mm - 250 mm (W)
100 mm - 420 mm (L)

120 mm - 250 mm (W)
100 mm - 420 mm (L)

Product weight:-
TBA
Packaging material:-
Laminated films
Power consumption:-
3 x 220 (415) VAC, 7.0 KW
Compressed air:-
0.6 MPa, 350L/min
Machine dimensions:-
1380 mm W
2200 mm L
1800 mm H
Machine weight:-
approx. 1000 kg

Bagging machines

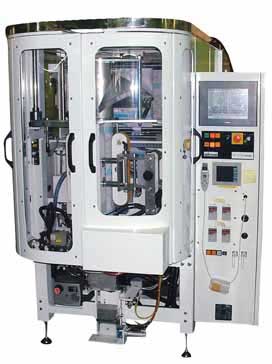

WF-2700CN bagging machine for gusset bags with zipper

Bagging technology

Block bottom gusset bag with zipper and hem seal

Bagging machines

Pillow bag with zipper

Bagging technology

Block bottom gusset bag

Bagging machines

Block bottom gusset bag with zipper
