Three side seal with bottom gusset

This machine is designed primarily for forming bags with hem seal.

  • Simple, functional, low maintenance construction
  • Servomotor drive to increase stability of the sealing function.

Applications

Snack, Bean Sprout, Pasta, Nuts, Pepper, Coffee, Powders, Bolts and nuts, Small metal parts, Small toys, Vegetable, Grains, Granulates, Meat dumpling, frozen chicken

Standard Specifications

  • Clogging detection, (horizontal sealer)
  • Self adjustment functions
  • Product memory function

Options

  • Feeding conveyors
  • Discharge conveyors
  • Printer
  • Perforation
  • Automatic splicing device
  • Gas filling
  • Stainless still frame
  • Variety of seal options
  • Gusset device
  • Volumetric filler
  • WeighFiller
  • Auger filler

Specifications

Operating speed:-
3 side seal:-

Bottom gusset:-


up-to 70 bags/min.

up-to 50 bags/min

Bag size:-
3 side seal:-


Bottom gusset:-


90 mm - 240 mm (W)
60 mm - 300 (L)

90 mm - 240 mm (W)
60 mm - 300 (L)

Product weight:-
TBA
Packaging material:-
Laminated film, (PE)
Power consumption:-
3 x 220 (415) VAC, 3.5 KW
Compressed air:-
0.6 MPa, 20150L/min
Machine dimensions:-
1.040 mm W
1.500 mm L
1.600 mm H
Machine weight:-
approx. 400 kg

Bagging machines

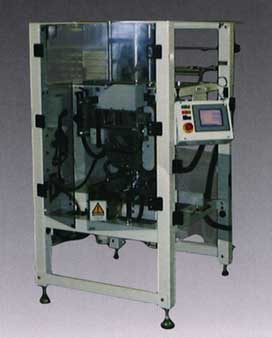

WF-5300SN bagging machine for 3 side seal with bottom gusset



Bagging technology



3 - side seal with bottom gusset

Bagging technology

3 - side bag
