Multi sealer/pillow & 3 or 4 side pouch convertible

This machine is primarily designed for producing of pouch convertible.

  • both 4 side and pillow type seal can be possible by just turning the horizontal sealer 90 degrees.
  • Simple, functional, low maintenance construction
  • Servomotor drive to increase stability of the sealing function.
  • Automatic adjustment device of film tracking.
  • Easy operation by means of 9" touch screen display

Applications

Snack, Bean Sprout, Pasta, Nuts, Pepper, Coffee, Powders, Bolts and nuts, Small metal parts, Small toys, Vegetable, Grains, Granulates, Meat dumpling, frozen chicken

Standard Specifications

  • Clogging detection, (horizontal sealer)
  • Self adjustment functions
  • Product memory function

Options

  • Feeding conveyors
  • Discharge conveyors
  • Printer
  • Perforation
  • Automatic splicing device
  • Gas filling
  • Stainless still frame
  • Variety of seal options
  • Gusset device
  • Volumetric filler
  • WeighFiller
  • Auger filler

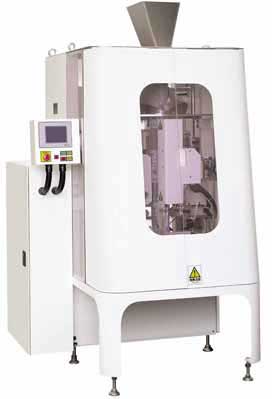

Specifications - WF-3400SN/WN

Operating speed

pillow bag, 3 or 4 side bag:-
up-to 80 bags/min.
zipper bag:-
up-to 55 bags/min.

Bag size



Pillow bag:-
70 mm - 220 mm (W)
80 mm - 330 mm (L)
3 or 4 side bag:-
80 mm - 230 mm (W)
80 mm - 330 mm (L)
Product weight:-
TBA
Packaging material:-
Laminated films
Power consumption:-
3 x 220 (415) VAC, 3.2 KW
Compressed air:-
0.6 MPa, 500L/min
Machine dimensions:-
1082 mm W
1498 mm L
1600 mm H
Machine weight:-
approx. 700 kg

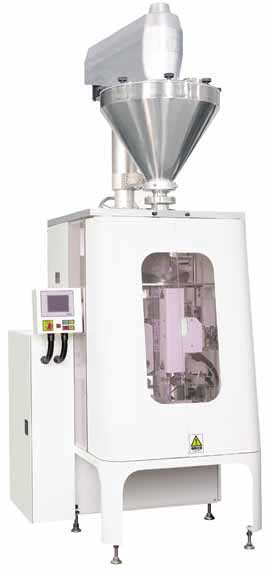

WF-3400WNA bagging machine with auger filler

Bagging machines

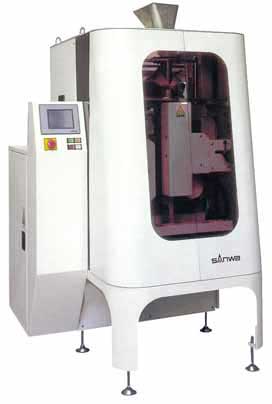

WF-3400SN bagging machine for 3 or 4 side convertible pouchesr



Bagging technology

Pillow bag



4 side seal bag



Bagging machines

3 side seal bag



Bagging machines

WF-3400VN bagging machine
