Solution for pouch with reclosable zipper
This machine is primarily designed for producing of reclosable zipper pouches.
- Lower cost then using preformed zipper
- Simple, functional, low maintenance construction
- Servomotor drive to increase stability of the sealing function.
- Automatic adjustment device of film tracking.
- Versatile packaging forms are available, zipper bag, 4-side, 3 side seals and pillow type bag.
Applications
Shred cheese, Snack, Bean Sprout, Pasta, Nuts, Pepper, Coffee, Powders, Bolts and nuts, Small metal parts, Small toys, Vegetable, Grains, Granulates, Meat dumpling, frozen chicken
Standard Specifications
- Clogging detection, (horizontal sealer)
- Self adjustment functions
- Product memory function
Options
- Feeding conveyors
- Discharge conveyors
- Printer
- Perforation
- Automatic splicing device
- Gas filling
- Stainless still frame
- Variety of seal options
- Gusset device
- Volumetric filler
- WeighFiller
- Auger filler
Specifications - WF-3510CN
|
|
| pillow bag, 3 or 4 side bag:- |
up-to 50 bags/min. |
| zipper bag:- |
up-to 40 bags/min. |
|
|
| pillow bag:- |
100 mm - 260 mm (W)
100 mm - 310 mm (L) |
| 3 or 4 side bag :- |
100 mm - 330 mm (W)
100 mm - 310 mm (L) |
| zipper bag:- |
150 mm - 330 mm (W)
150 mm - 300 mm (L) |
Product weight:- |
TBA |
Packaging material:- |
Laminated films |
Power consumption:- |
3 x 220 (415) VAC, 8.5 KW |
Compressed air:- |
0.6 MPa, 550L/min |
Machine dimensions:- |
1560 mm W
1715 mm L
1900 mm H |
Machine weight:- |
approx. 900 kg |
|

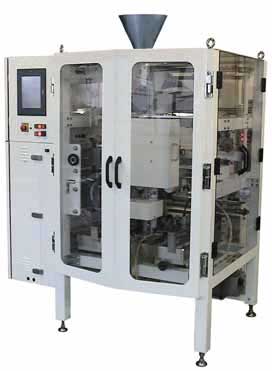

WF-3510CN bagging machine for zipper pouch
Pillow bag
Bottom gusset with zipper
4 side seal bag with zipper
3 side seal bag with zipper
|
